Dimensions & CAD Files

Dimensions#

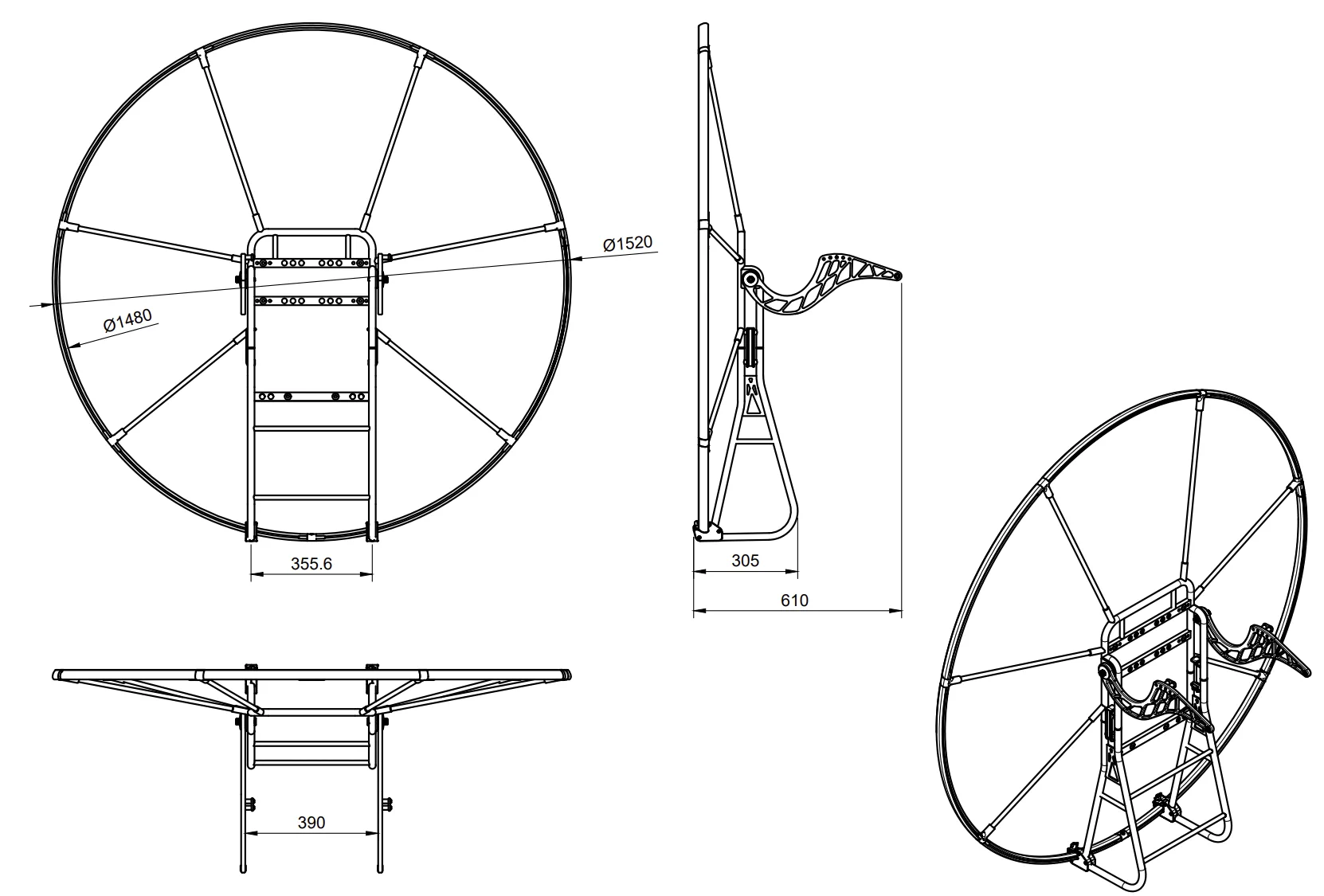

Assembled (Ready to Fly)#

Size when assembled ready to fly: 610 x 1520 x 1520mm

• Width: 1520mm (including protective cage)
• Height: 1520mm (frame to top of hoop)
• Depth: 610mm (front to back)

Shipping / Transport#

Shipping / Transport size: 580 x 400 x 420mm

The SP140 v2.5 disassembles for compact storage and transportation:

• Length: 580mm
• Width: 400mm
• Height: 420mm

This compact size allows for easy transport in most vehicles and fits in standard cargo areas.

3D CAD Files#

Full 3D files are freely available for download at:

https://github.com/openppg/sp140-hardware/tree/main

Available Files#

The repository includes:

• Frame Parts - Complete frame assembly CAD files

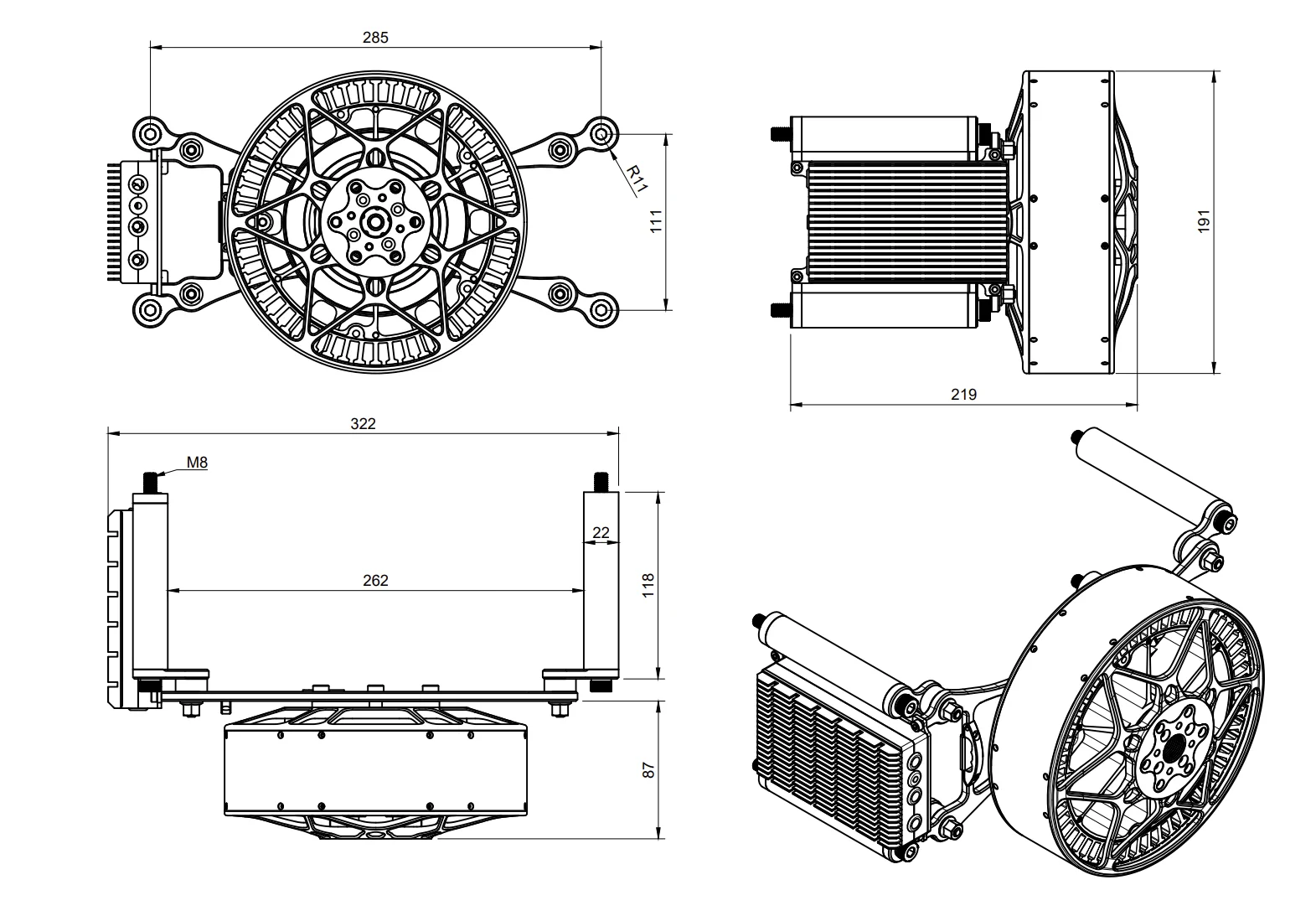

• Motor Mount - Motor mounting plate designs
• Hoop Sections - Protective cage segments
• Hardware - Fasteners and connection details
• Assembly Drawings - Detailed assembly views

Supported Formats#

CAD files are typically available in:

• STEP files (.stp)
• STL files (.stl)
• IGES files (.igs)
• Native CAD formats

Usage#

These files are provided for:

• Custom modifications
• Spare part fabrication
• Educational purposes
• Integration with other systems
• Visualization and simulation

License#

Files are provided under the OpenPPG open-source license. Please review the repository for specific terms and conditions.

Weight Distribution#

Understanding weight distribution helps with:

• Transport planning
• Storage solutions
• Vehicle compatibility
• Balance considerations

Component Weights#

• Frame Assembly: ~29 lbs (13.2 kg)
• Battery (2.6 kWh): 25.8 lbs (11.7 kg)
• Battery (4.8 kWh): 49.0 lbs (22.2 kg)
• Propeller: ~2 lbs (0.9 kg)

Clearance Requirements#

Operating Clearance#

When operating, ensure:

• Front: 2m (6.5 ft) clear space for propeller
• Sides: 1m (3.3 ft) each side
• Rear: 1m (3.3 ft) behind pilot

Storage Clearance#

For storage (disassembled):

• Floor Space: 60 x 45 cm (24 x 18 in)
• Height: 150 cm (5 ft) for vertical storage
• Access: Allow space for assembly/disassembly

Transport Guidelines#

Vehicle Requirements#

The disassembled SP140 fits in:

• Standard car trunks
• SUV cargo areas
• Van interiors
• Truck beds
• Roof cargo carriers (with weather protection)

Packaging#

When transporting:

1. Battery: Keep in foam case, upright or on side (never upside down)
2. Frame: Can be bundled together
3. Propeller: Store separately in protective case
4. Electronics: Keep dry and protected from impact

See After-Flight Care for detailed transport instructions.

Customization#

The open-source CAD files allow you to:

• Design custom accessories
• Create mounting solutions
• Develop third-party add-ons
• Modify for specific needs

Community Resources#

For additional resources:

• GitHub: github.com/openppg/sp140-hardware
• Community Forum: community.openppg.com
• Support:
